Sandwich System

Sandwich system flooring is indispensable for professional athletics tracks with its flexible and shock absorbing feature consisting of 3 layers. It provides comfortable and safe sports opportunities with its shock absorbing and high resistance feature for spiked shoes.

Catalogue

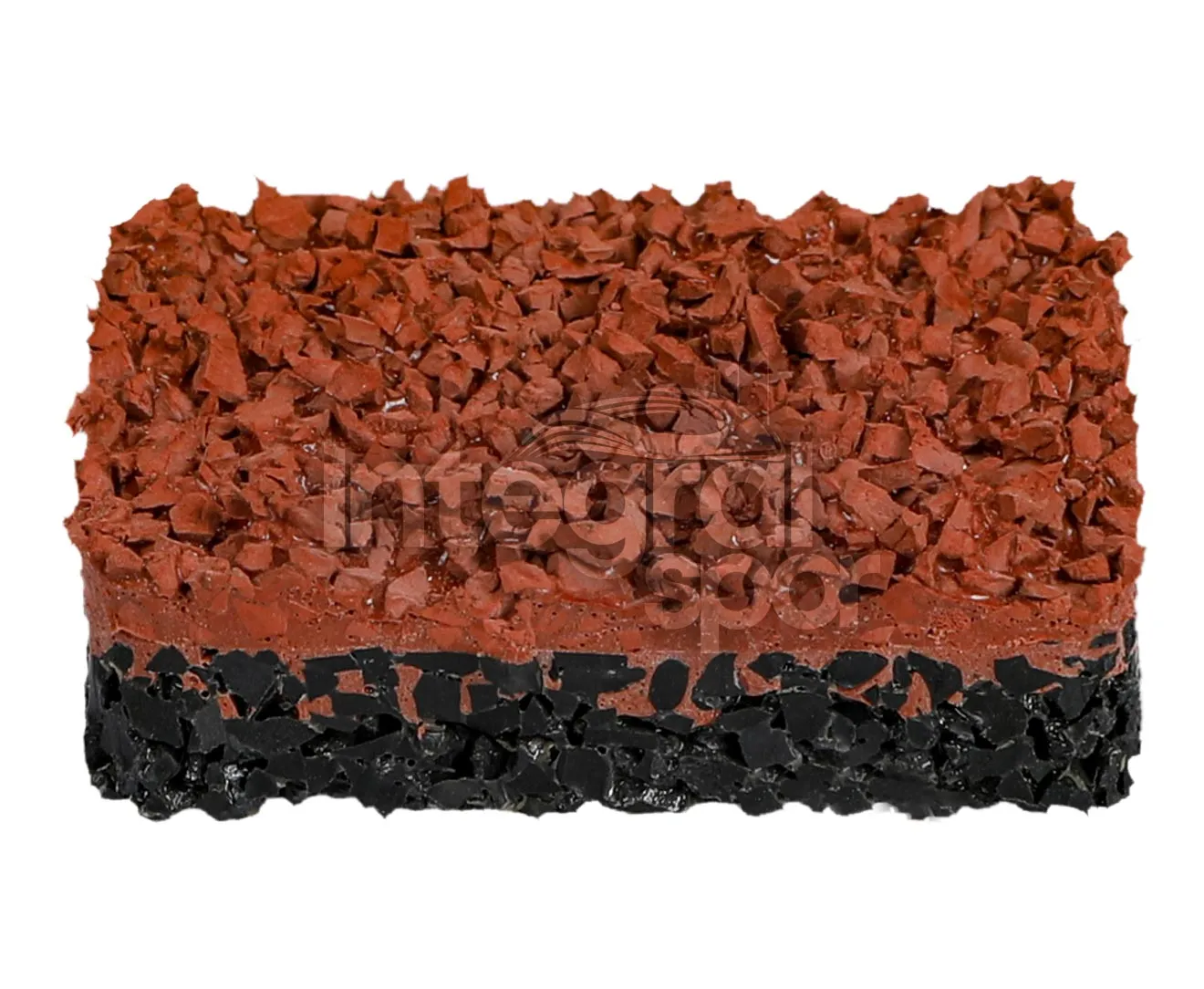

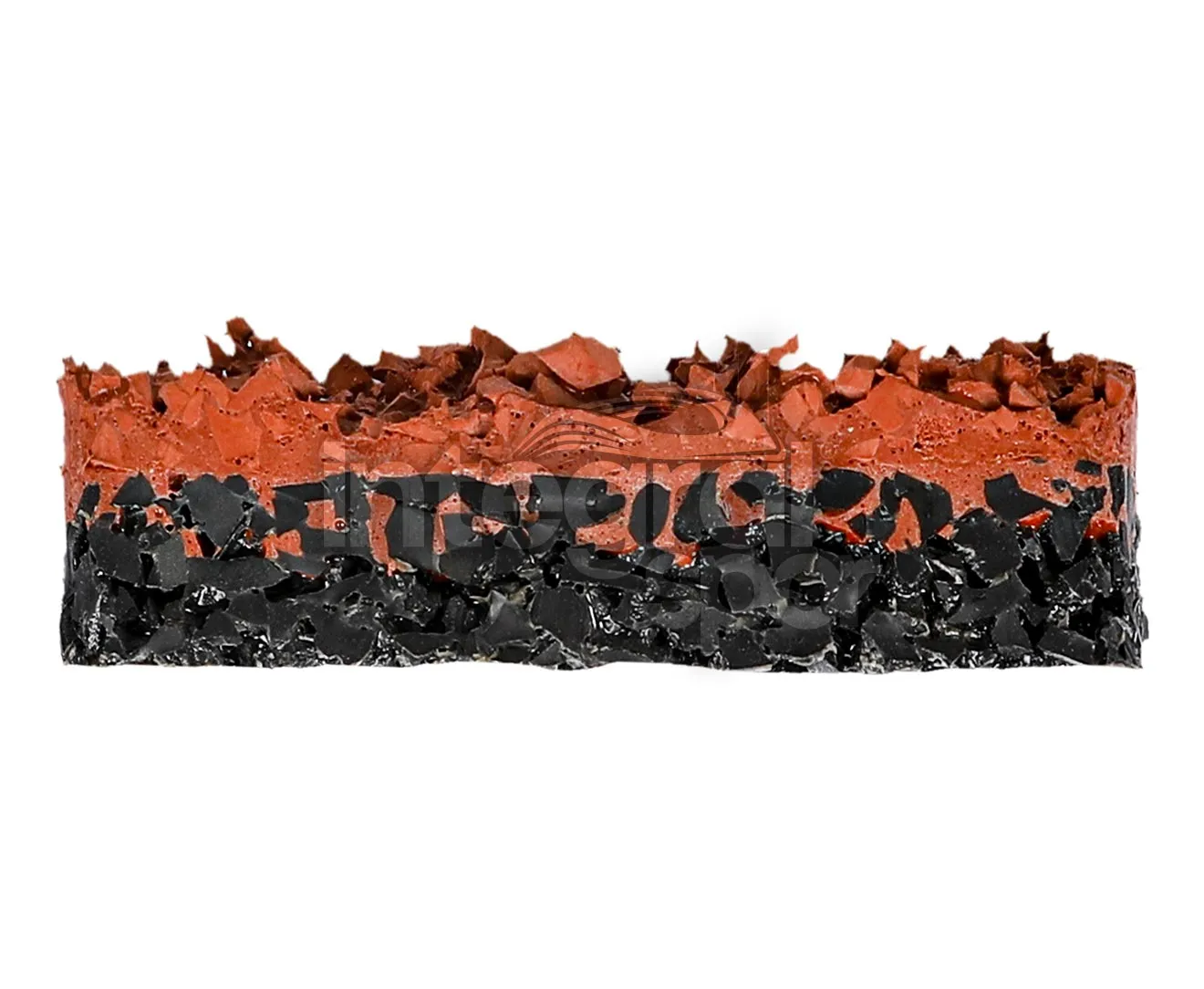

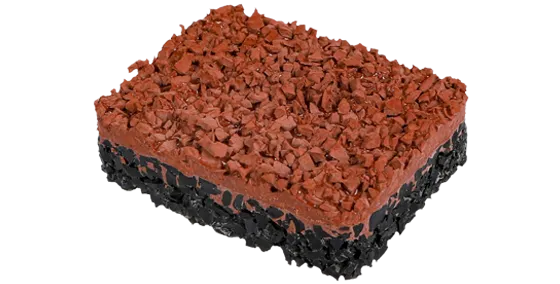

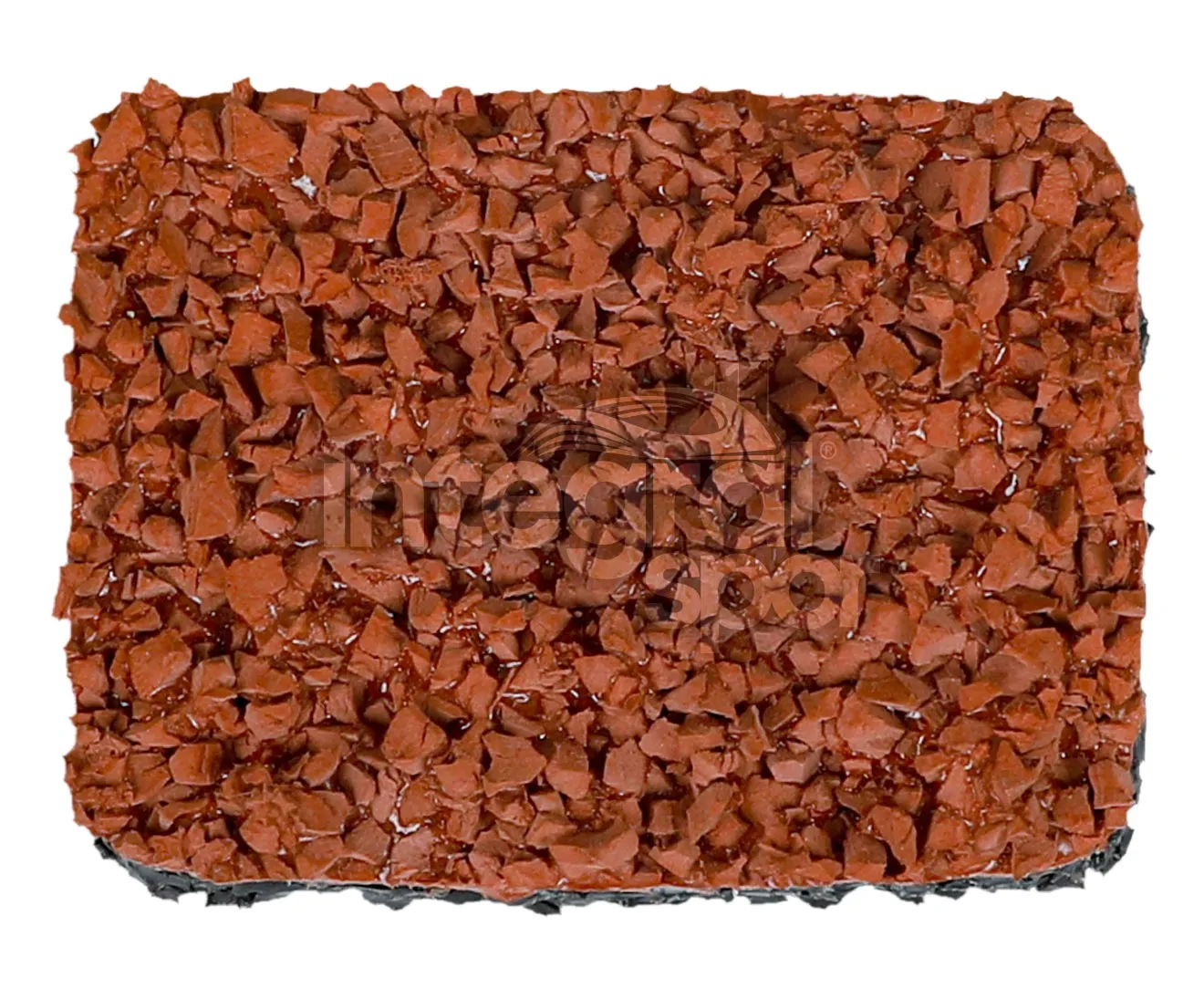

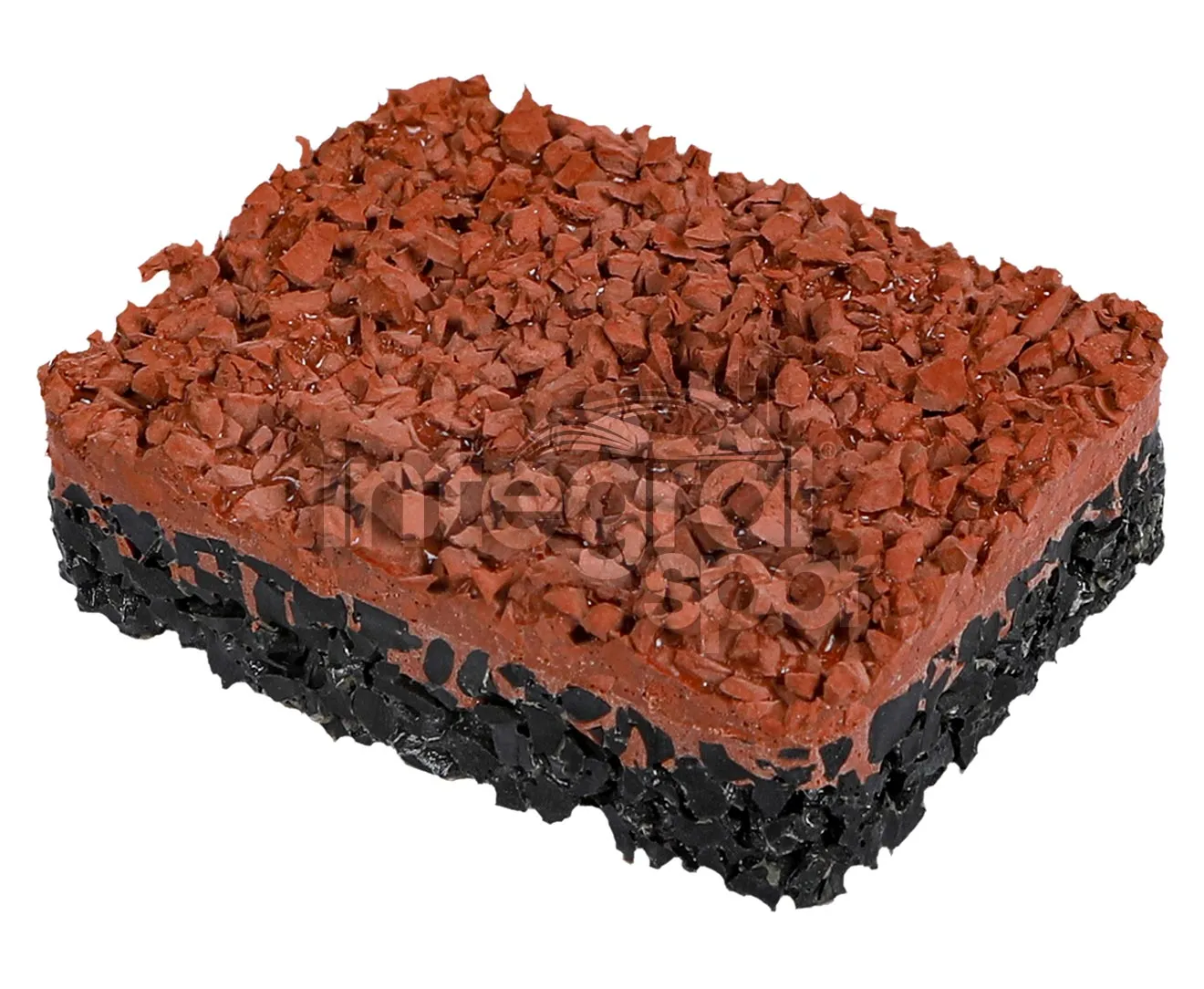

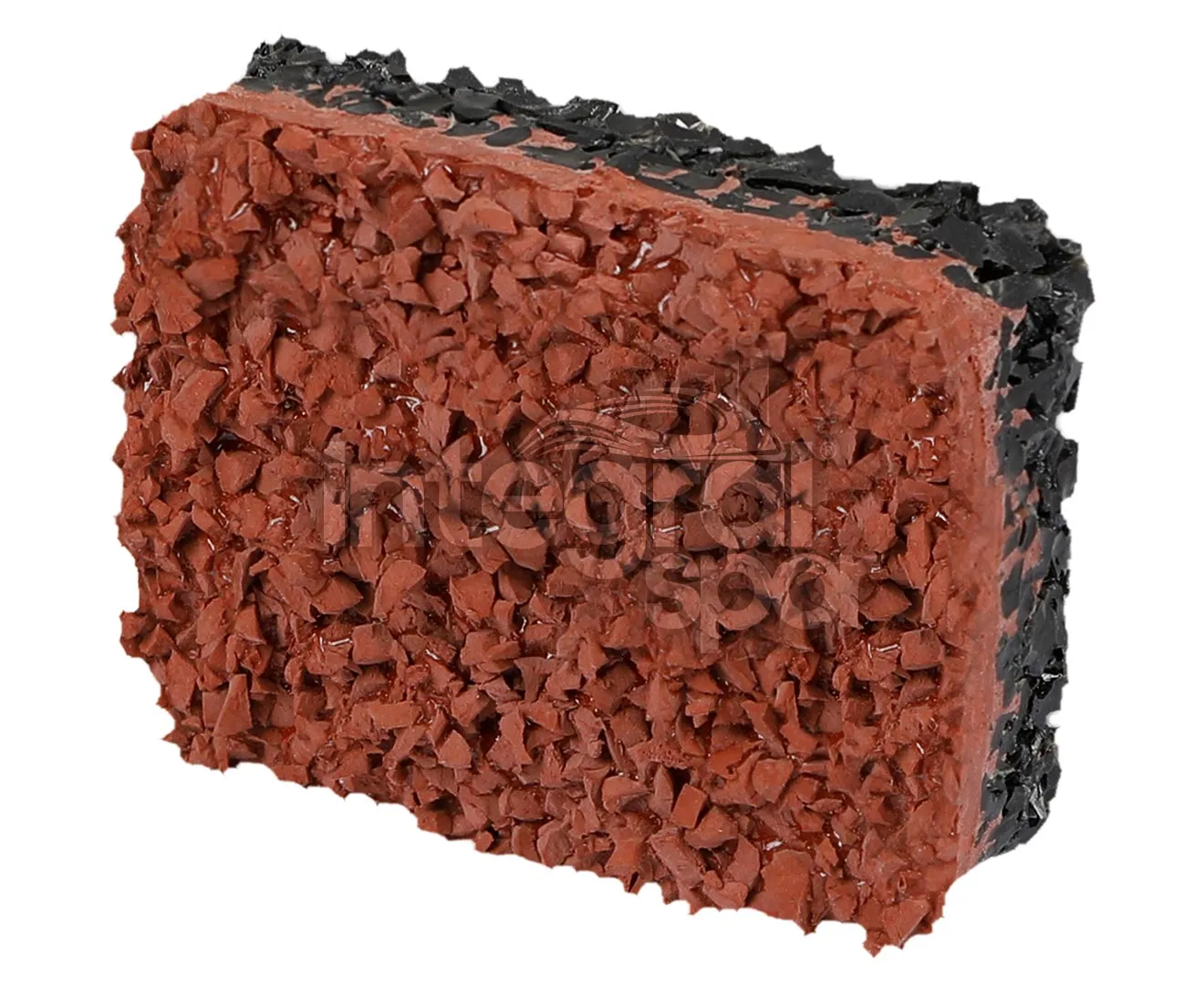

The sandwich system flooring consists of 3 layers with a thickness of 13 mm. Approved by the international World Athletics, the Sandwich System is especially suitable for spike shoes.

  • Constructed with a thickness of 13 mm.
  • Consists of 3 layers.
  • SBR + PU + 100% original EPDM + line marking.
  • An World Athletics-approved international system.
  • Shock absorption meets World Athletics standards.
  • High abrasion resistance.
  • Suitable for use with spike shoes.
  • Long-lasting comfort thanks to high UV resistance.
  • Ideal for very hot and very cold climates.
  • Waterproof and drains water from the surface.
  • Very low maintenance costs.
  • Used in professional athletics tracks.
TECHNICAL INFORMATION
Thickness 10 MM SBR LAYER 3,5 MM PU + EPDM
Primer Layer 0,15 KG/m2  PU BINDER
Bottom Layer 6,50  KG/m2 SBR 1-3,5 MM 1,3  KG/m2 PU BINDER
Pore Sealer 1,10  KG/m2 POLYURETHANE 0,40  KG/m2 DUST SBR
Top Layer 2,10  KG/m2 SELF LEVELING PU 2,80  KG/m2 1-3,5 MM EPDM
Field Lines 0.025 KG/m  PU LINE PAINT

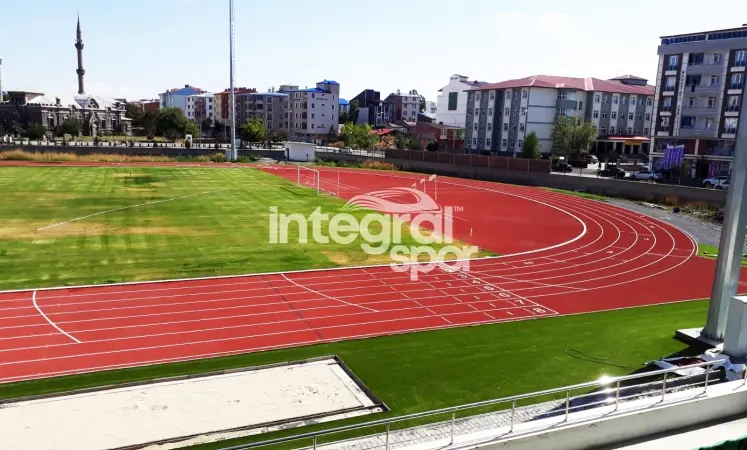

Projects

Frequently Asked Questions

1. What is a sandwich system floors?

Sandwich system is a professional athletics track surfaces and is a type of floor consisting of rubber, binder and polyurethane.

2. Where are sandwich system floors used?

It is used on professional athletics tracks and walking paths.

3. How is a sandwich system athletics track constructed?

Black SBR rubber granules of 10 mm thickness are applied to the ground on the asphalt with a finisher machine, then polyurethane material is poured on the ground and approximately 4 kg/m2 EPDM granules are poured on it and waited for 1 day. Finally, the ground is cleaned and lines are drawn.

4. What are the product features of sandwich system SBR + PU?

It is a type of rubber + polyurethane material obtained from recycled material.

5. What are the prices and costs of sandwich system floors?

Special prices are calculated according to the color and quantity in the project. For detailed information +90 (212) 678 13 13

6. What are the features of sandwich system floors?

Sandwich flooring, consisting of 3 layers, is indispensable for athletics tracks and walking paths with its flexible and shock absorbing properties and UV resistance.
